Starlink Mini Kit: 7 Powerful Benefits for Portable Internet

Starlink Mini Kit in Uganda

The Starlink Mini Kit combines a Starlink satellite terminal and WiFi router into a compact piece of hardware designed for portability.

This integrated design is one of the biggest differences between Mini and larger Standard Starlink hardware.

With Standard 4 X, the satellite terminal and Router 3 are separate pieces of equipment. With Mini, the WiFi router is integrated directly into the Starlink terminal, so customers can connect to WiFi without installing a separate router.

The result is a smaller Starlink system that can be packed, transported and deployed more easily.

Starlink describes Mini as a compact system designed to provide high-speed internet on the go. Its current product information states that the terminal measures approximately 298.5 × 259 × 38.5 mm and weighs about 1.10 kg without the kickstand.

This makes the Mini particularly attractive for customers who value portability.

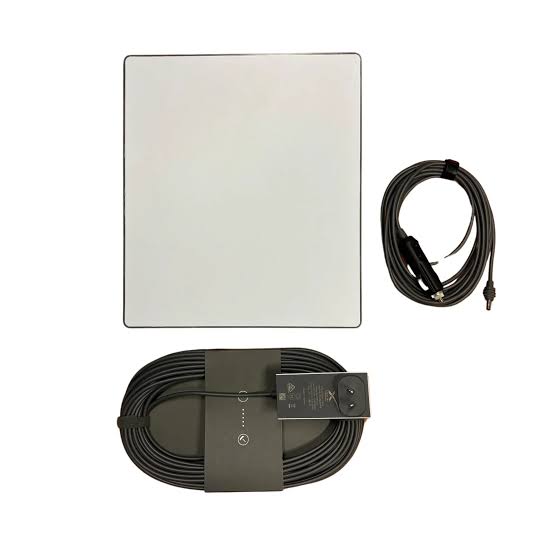

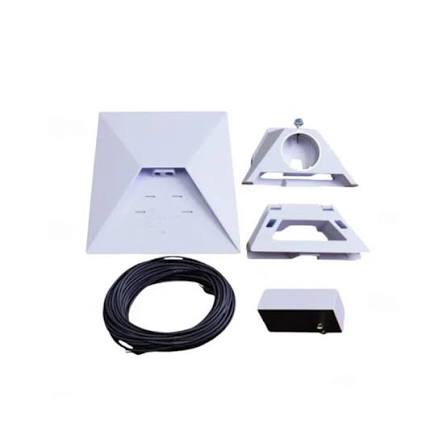

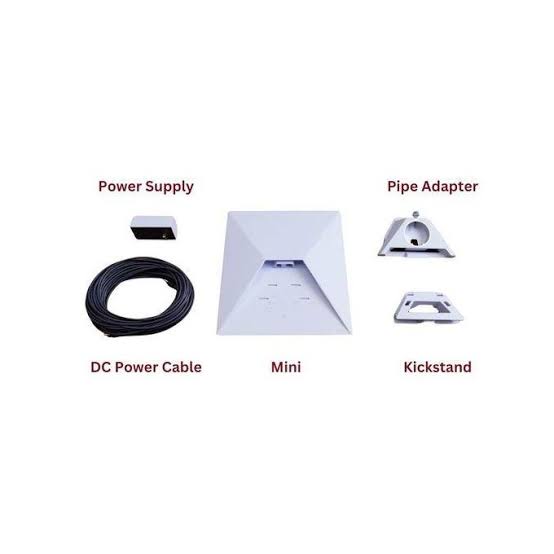

What Comes with the Starlink Mini Kit?

The Mini kit contains the main equipment required to get connected without purchasing a separate WiFi router.

Starlink's current setup documentation lists the following components:

Table 1: Starlink Mini Kit Contents

These components are confirmed in Starlink's current Mini setup guide.

The included mounting hardware makes Mini particularly flexible because customers can begin with the kickstand and move to a suitable pole or permanent installation when necessary.

Starlink Mini Specifications

Despite its small size, Starlink Mini combines the satellite terminal, WiFi hardware and networking capabilities into one compact unit.

It uses an electronic phased-array antenna with a 110° field of view and software-assisted manual orientation.

Table 2: Starlink Mini Specifications

Specifications are based on Starlink's published Mini hardware information.

Built-In WiFi

One of the most important features of the Starlink Mini Kit is its integrated WiFi router.

Customers do not need a separate Starlink router simply to get online.

Once Mini is powered and connected to the Starlink network, users can connect their phones, laptops and other compatible devices directly to its WiFi network.

Starlink's current specifications identify the wireless system as WiFi 5, using dual-band 3×3 MU-MIMO technology.

This integrated approach reduces the amount of equipment required for a portable installation.

Starlink Mini WiFi Coverage

Starlink currently states WiFi coverage of up to approximately 112 m² or 1,200 ft² for Mini under suitable conditions. It also lists support for up to 128 connected devices.

Actual coverage can differ considerably depending on the environment.

Concrete walls, metal structures, floors and the position of the Mini can reduce WiFi coverage.

For a small house, temporary office or open workspace, the integrated router may provide sufficient coverage.

Larger properties may require additional networking equipment.

Starlink Mini Ethernet Port

Mini also provides wired networking capability.

Starlink's current specifications list one latching Ethernet LAN port.

This allows compatible Ethernet equipment to be incorporated into the installation.

For example, Mini can be connected to additional networking equipment when a customer needs to distribute connectivity beyond the area served by the built-in WiFi.

Starlink also offers a dedicated Mini Ethernet cable for supported wired networking configurations, including wired connections to Router Mini.

Table 3: Starlink Mini Networking Options

The correct network design depends on how and where Mini will be used.

Starlink Mini Power Consumption

Power consumption is one of Mini's biggest advantages for portable installations.

Starlink's current product specifications list average power consumption of approximately 25–40W. Its support documentation also notes typical consumption around 20–40W, with approximately 15W while idle.

This is substantially lower than larger Standard Starlink hardware.

Lower consumption means customers can generally operate Mini for longer from the same battery capacity.

This makes it especially useful for:

• Portable power stations
• Solar systems
• Vehicle power
• Battery installations
• Field operations
• Remote sites

Actual battery runtime still depends on power consumption, usable battery capacity and conversion losses.

Powering Starlink Mini from DC

Mini supports direct DC operation.

Starlink lists an input rating of 12–48V DC with a 60W maximum.

This provides considerably more flexibility for mobile and off-grid installations than systems that depend primarily on conventional AC power.

A suitable battery arrangement can potentially operate Mini without first converting battery power into AC.

However, customers should ensure the power source meets Starlink's electrical requirements rather than connecting an arbitrary DC source.

Powering Starlink Mini with USB-C

Starlink also offers a dedicated Mini USB-C cable for compatible USB Power Delivery sources.

The official 5 m USB-C cable requires a 100W, 20V/5A power source. Starlink states that this cable is specifically designed for powering Mini and is not intended as a general USB-C charging cable.

This can be particularly useful for customers who already use suitable high-output portable batteries.

The USB-C option makes Mini attractive for travellers and field teams who want to minimise the amount of specialised power equipment they carry.

Starlink Mini with Portable Power Stations

Portable power stations are a natural companion to Mini because of its relatively low power consumption.

Suppose Mini averages approximately 30W during a particular period.

A power station providing 500Wh of usable energy would theoretically provide:

500Wh ÷ 30W = approximately 16.7 hours

This calculation is only illustrative.

Actual runtime will vary because Mini's power consumption changes and the battery system itself experiences conversion and operating losses.

Table 4: Illustrative Mini Battery Runtime

These are mathematical examples using usable battery energy, not guaranteed Starlink Mini runtimes.

Starlink Mini for Travel

Portability is one of Mini's strongest advantages.

The terminal itself is roughly laptop-sized and weighs approximately 1.1 kg without the kickstand.

The kickstand folds with the terminal, allowing Mini to be deployed relatively quickly.

A traveller can place it in an appropriate location, connect power, use the Starlink app to check alignment and then connect devices directly to its integrated WiFi.

The service plan used with Mini must still support the customer's intended location and type of use.

Hardware portability should not be confused with unlimited service mobility.

Starlink Mini for Remote Work

Mini can be particularly useful for remote workers who frequently operate outside conventional offices.

A laptop, Starlink Mini and suitable portable battery can create an independent internet setup where Starlink service is available and the terminal has suitable sky visibility.

Possible applications include:

• Field engineering
• Construction supervision
• Research teams
• Survey work
• Remote administration
• Mobile offices
• Emergency response
• Remote accommodation

Because the router is integrated, fewer separate components need to be transported.

Starlink Mini for Homes

Although Mini is strongly associated with portability, it can also be installed at a fixed location.

Starlink states that the included kickstand can be used for quick deployment or permanent installation. The kit also includes the Mini Pipe Adapter and Flat Mount for additional mounting flexibility.

For smaller homes, Mini's integrated WiFi may be sufficient.

Larger homes may need Router Mini, compatible mesh equipment or other networking infrastructure to improve coverage.

The suitability of Mini versus Standard should therefore depend on the household's requirements rather than simply choosing the smallest terminal.

Starlink Mini for Businesses

Mini can also be useful for certain business applications.

A small field office, temporary shop, construction site or mobile operation may not require a full fixed networking installation.

Mini provides a compact way to establish connectivity at such locations.

Businesses can also use Ethernet or additional networking equipment when wired devices or wider WiFi coverage are required.

For large offices with many users and extensive network infrastructure, Standard, Enterprise or Performance hardware may be more appropriate depending on the application.

Starlink Mini for Farms and Remote Sites

Farms and remote sites can benefit from Mini's combination of portability and relatively low power requirements.

A remote installation may have limited grid electricity but access to solar panels and battery storage.

Because Mini consumes less power than larger Starlink systems, the battery and solar requirements can be easier to manage.

The terminal still requires an unobstructed view of the sky.

Trees, buildings, poles and other objects that block the satellite path can cause service interruptions. Starlink recommends using the obstruction tool in its app when choosing an installation position.

Installing the Starlink Mini Kit

Starlink Mini is designed for relatively straightforward setup.

The basic process begins by selecting a location with a clear view of the sky.

The Starlink app can then be used to check for obstructions.

The terminal is positioned using the kickstand or appropriate mount, connected to power and aligned according to the guidance in the app.

Starlink states that basic installation can take as little as approximately 15 minutes when using the standard setup, although actual installation time depends on the mounting and power arrangement.

Table 5: Starlink Mini Installation Process

Permanent roof or pole installations require additional attention to mounting and cable routing.

Starlink Mini Mounting Options

Mini includes more mounting flexibility than many customers realise.

The kit contains a kickstand as well as a Mini Pipe Adapter and Flat Mount.

Starlink states that the supplied Pipe Adapter can attach to an existing pole with a diameter between approximately 31 mm and 50 mm.

Additional Mini-specific accessories are also available for other installation styles.

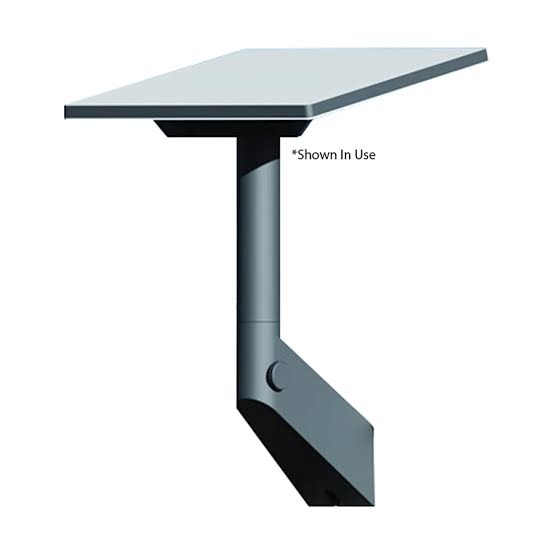

These can include wall, pivot, mobility and roof-rack mounting solutions.

Mounts should always be selected specifically for Mini because Starlink states that mounting equipment is hardware-specific and not universally interchangeable between kits.

Starlink Mini vs Starlink Standard

Mini and Standard serve overlapping but different requirements.

Mini prioritises portability, compact size and lower power consumption.

Standard provides a larger terminal and separate networking equipment and may be more appropriate for permanent installations with greater networking requirements.

Table 6: Starlink Mini vs Standard 4 X

Starlink itself identifies Mini as smaller than Standard 4 X and confirms that Mini uses integrated WiFi while Standard 4 X uses a separate Router 3.

Starlink Mini Mesh Networking

The integrated router may not cover every large building.

Starlink currently lists Mini as compatible with Starlink mesh systems.

Router Mini can also be meshed with a Starlink Mini system either wirelessly or through an appropriate wired connection. Starlink recommends suitable placement between routers and avoiding major obstructions such as cement walls and metal appliances.

This allows Mini to serve as the internet source while additional networking equipment improves coverage elsewhere.

Starlink Mini Ethernet Networking

Mini's Ethernet capability makes it possible to build a more advanced network than the integrated WiFi alone.

For example, a suitable Ethernet connection can feed additional networking equipment.

This may be useful for a temporary office, CCTV installation or larger property.

It is important to note that Mini does not support Power over Ethernet as its power source. Starlink specifically states that connecting a PoE Ethernet cable does not remove the requirement for Mini's separate power connection.

This distinction is important when designing custom network installations.

Starlink Mini and Solar Power

Mini's low power consumption makes solar operation particularly practical.

A solar setup can combine:

• Solar panels
• Battery storage
• Suitable charge controller
• Compatible Mini power connection
• Appropriate protection equipment

The solar system should be sized according to the number of hours Mini will operate each day and the energy required by other equipment.

For example, a laptop, lighting and phone charging can consume as much or more energy than Mini itself.

A proper energy calculation should therefore consider the entire system.

Starlink Mini for Vehicles

Mini's DC power capability also makes it useful around vehicles where appropriate service and installation conditions permit.

A suitable DC power arrangement can avoid the need to operate a conventional AC inverter solely for Starlink.

Starlink's Mini hardware accepts 12–48V DC within its specified requirements.

Permanent vehicle installations should use appropriate mounting, cable routing and electrical protection.

Customers should also choose a Starlink service plan suitable for the way and locations in which they intend to use the equipment.

Choosing the Starlink Mini Kit

Mini is particularly worth considering when portability and low power consumption are priorities.

Before purchasing, consider:

• Where Starlink will be used
• Whether the installation will move regularly
• Required WiFi coverage
• Number of users
• Ethernet requirements
• Available power
• Required battery runtime
• Mounting requirements
• Service-plan requirements

For a fixed large home or office, Standard may sometimes be more appropriate.

For portable internet, remote work, field operations and compact off-grid installations, Mini's integrated design can be particularly useful.

Why Buy the Starlink Mini Kit from Starlink Uganda Installers?

Starlink Uganda Installers can help customers select and configure the Mini according to how it will actually be used.

Customers can receive assistance with fixed installations, portable setups, mounting, Ethernet networking, WiFi expansion and backup power.

For remote and off-grid users, the installation can also be planned around batteries, portable power stations or solar equipment.

This helps create a complete Mini setup rather than simply purchasing the terminal without considering power, mounting and network coverage.

FAQs

1. What is the Starlink Mini Kit?

The Starlink Mini Kit is a compact Starlink satellite internet system with an electronic phased-array antenna and integrated WiFi router. It is designed to provide a more portable Starlink setup.

2. Does Starlink Mini have built-in WiFi?

Yes. Starlink Mini has an integrated WiFi 5 router, so a separate router is not required simply to connect wireless devices.

3. How much power does Starlink Mini use?

Starlink currently lists average consumption at approximately 25–40W, while its power guidance notes typical operation around 20–40W and approximately 15W when idle.

4. Can Starlink Mini run from a battery?

Yes. Starlink states that Mini can be powered from a battery provided the power source meets Mini's electrical requirements.

5. Can Starlink Mini be powered using USB-C?

Yes. Starlink offers a dedicated Mini USB-C cable requiring a 100W, 20V/5A USB Power Delivery source.

6. Does Starlink Mini have an Ethernet port?

Yes. Starlink Mini includes one latching Ethernet LAN port for compatible wired networking.

7. Can I install Starlink Mini permanently?

Yes. The included kickstand can support quick or permanent installation, and the kit also includes a Mini Pipe Adapter and Flat Mount. Additional Mini-specific mounting options are available.

8. Can I extend Starlink Mini WiFi coverage?

Yes. Mini is compatible with supported Starlink mesh networking, and Router Mini can be added where additional WiFi coverage is required.

9. Is Starlink Mini suitable for remote areas?

Yes, provided Starlink service is available, the terminal has suitable sky visibility and an appropriate power source is available. Its compact size and low power requirements make it particularly useful for remote and portable installations.

10. Where can I buy the Starlink Mini Kit in Uganda?

Customers can contact Starlink Uganda Installers for Starlink Mini equipment together with assistance for installation, mounting, networking, portable power and off-grid configurations.

Conclusion

The Starlink Mini Kit combines satellite connectivity, integrated WiFi, Ethernet networking and relatively low power consumption in a compact terminal weighing about 1.1 kg. Its portable design makes it suitable for travellers, remote workers, field teams, homes, farms and temporary locations where conventional internet infrastructure may be limited.

Mini also provides considerable power flexibility. Its 12–48V DC input, relatively low average consumption and supported USB-C power option make it easier to integrate with portable power stations, batteries and appropriately designed solar systems than higher-consumption Starlink hardware.

For the Starlink Mini Kit, professional setup, mounting, WiFi expansion and portable or off-grid power solutions in Uganda, contact Starlink Uganda Installers. Customers can get assistance designing the complete installation around their intended use rather than purchasing hardware alone. Visit starlinkugandainstallers.co.ke for more information.
