Starlink Standard Pivot Mount in Uganda

Starlink requires a clear view of the sky to communicate reliably with satellites moving overhead.

Trees, nearby buildings, roof sections, poles and other physical objects can obstruct that view and cause interruptions. Starlink therefore recommends using the obstruction tool in the Starlink App before permanently installing the terminal.

For many properties, the roof provides one of the clearest available installation positions.

The Starlink Standard Pivot Mount is designed specifically for this type of installation.

Unlike the basic kickstand supplied with Standard hardware, the Pivot Mount creates a more permanent roof installation while providing substantial adjustment during positioning.

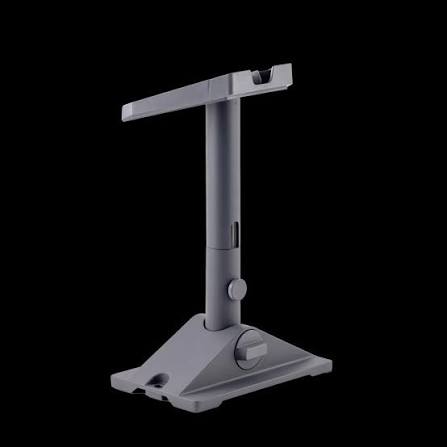

What Is the Starlink Standard Pivot Mount?

The Starlink Standard Pivot Mount is a permanent mounting system designed primarily for sloped and shingled roofs.

Its most important feature is the pivoting mechanism.

Instead of forcing the terminal into one fixed mounting angle, the bracket allows the installer to adjust the mast according to the roof angle and required Starlink orientation.

Starlink describes the mount as suitable for different angles and directions and specifically identifies it as an accessory for slanted, shingled roofs.

Once the correct orientation is found, the terminal can be aligned using the Starlink App and locked into position.

Starlink Standard Pivot Mount Specifications

Table 1: Standard Pivot Mount Specifications

Specification	Details
Product	Starlink Standard Pivot Mount
Primary Application	Slanted and shingled roofs
Compatibility	Starlink Standard and Enterprise
Pivot Adjustment	Up to 90°
Overall Height	Approx. 448 mm / 17.6 in
Base Width	Approx. 140 mm / 5.5 in
Side Height	Approx. 235 mm / 9.25 in
Side Base Length	Approx. 223 mm / 8.78 in
Package Dimensions	Approx. 280 × 470 × 105 mm
Package Weight	Approx. 1.9 kg / 4.2 lb
Installation Type	Permanent roof mounting

Starlink's current technical documentation shows a 90-degree pivot range, with the mounting assembly measuring approximately 448 mm high, 140 mm wide and 223 mm across the base in the relevant views.

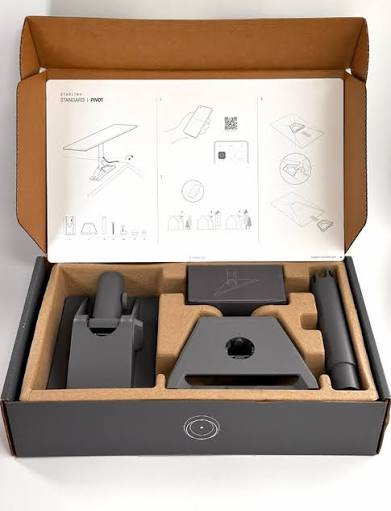

What Comes with the Standard Pivot Mount?

The current installation kit contains more than the mounting base alone.

Table 2: Standard Pivot Mount Package Contents

Component	Purpose
Pivot Mount	Provides roof attachment and adjustment
Mast Adapter	Connects compatible Starlink hardware
Mast	Supports the terminal above the base
Sealant Tape Squares	Helps seal mounting penetrations
Sealant Tape Strips	Additional sealing around installation
2 Lag Screws	Secures mount to roof structure
20 Cable Routing Clips	Organises Starlink cable
Starlink Terminal	Not included with accessory

The current Starlink installation guide lists the Pivot Mount, Mast Adapter, Mast, sealant tape, two 3/8 × 3.5-inch lag screws and 20 cable-routing clips.

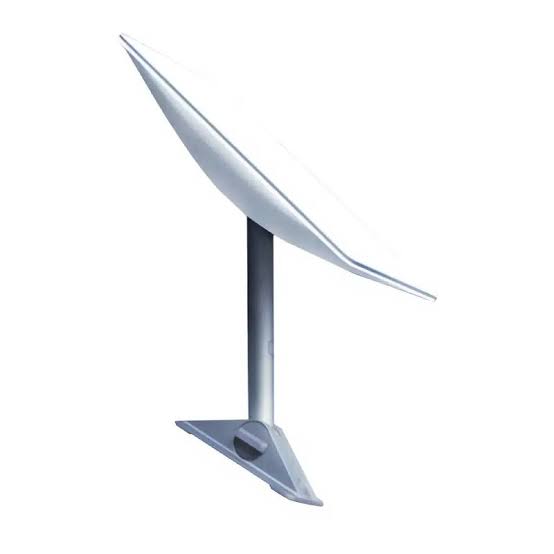

Compatible with Starlink Standard

Starlink officially lists the Pivot Mount as compatible with its current Standard hardware.

Customers may commonly refer to this terminal as:

• Starlink Gen 3

• Starlink V4

• Starlink Version 4

• Standard Gen 3

• Standard 4

• Standard 4 X

Starlink's current hardware identification information describes Standard 4 and Standard 4 X as rectangular terminals without the built-in motor used for self-orientation on older Standard Actuated hardware.

This distinction matters when buying mounts because Starlink states that mounts for Standard and Enterprise are hardware-specific and should not automatically be treated as compatible with other Starlink kits.

Compatible with Starlink Enterprise

The Pivot Mount is also officially compatible with Starlink Enterprise.

Starlink's Enterprise documentation specifically identifies the Pivot Mount as one of the mounting choices available with the Enterprise installation ecosystem.

This makes the mount useful for commercial installations where a sloped roof provides the best available location.

Potential Enterprise applications include:

• Offices

• Hotels

• Lodges

• Schools

• Retail properties

• Remote facilities

• Project offices

• Commercial buildings

The roof mount handles terminal positioning while the rest of the Enterprise network can be designed around third-party routers, switches and access points.

Why Use a Pivot Mount?

The biggest reason is installation flexibility.

Roofs are not all built at the same angle.

A fixed bracket that works well on one property may produce an unsuitable terminal orientation on another.

The Pivot Mount solves this by allowing the mast position to be adjusted.

Starlink's current documentation shows a pivot movement of up to 90 degrees.

The installer can therefore adapt the mount to the roof slope and then rotate the terminal according to the alignment guidance provided by the Starlink App.

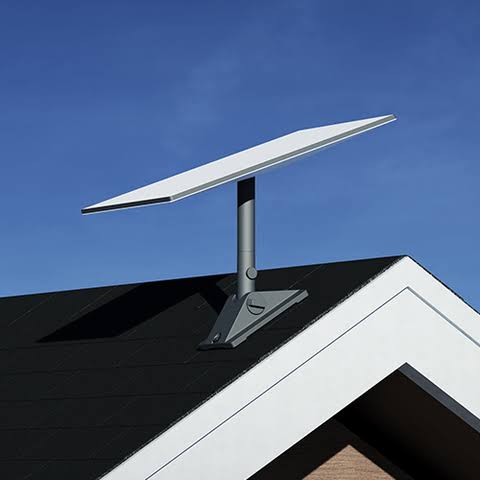

Designed for Slanted Roofs

Starlink specifically identifies the Pivot Mount as being ideal for slanted, shingled roofs.

A slanted roof can provide several installation advantages.

It may offer:

• Greater elevation

• Better sky visibility

• Fewer ground-level obstructions

• Protection from accidental contact

• Better separation from people and animals

However, the highest point is not automatically the best location.

The installer should use the Starlink App to check for obstructions before drilling the roof.

Finding the Best Roof Location

Starlink instructs users to find a mounting location with a clear view of the sky before installing the Pivot Mount.

Potential obstructions include:

• Tree branches

• Nearby roofs

• Poles

• Buildings

• Water tanks

• Chimneys

• Solar equipment

Starlink warns that objects blocking the connection between the terminal and satellites can cause service interruptions.

The obstruction tool in the Starlink App should therefore be used before selecting the final drilling location.

Tools Required for Installation

Starlink provides a specific list of recommended installation tools.

Table 3: Recommended Installation Tools

Tool	Purpose
Drill / Impact Driver	Drilling and fastening
6 mm / 1/4 in Drill Bit	Creates pilot holes
9/16 in Hex Socket	Tightens lag screws
Marker	Marks mounting holes
Level	Helps position mount correctly
Starlink App	Obstruction checking and alignment

These tools are specified in Starlink's current Pivot Mount installation documentation.

Working on a roof introduces additional safety requirements, so high or difficult roofs are better handled by appropriately equipped installers.

Removing the Standard Kickstand

Current Standard hardware normally includes a detachable kickstand.

Before inserting the terminal into the Pivot Mount system, Starlink instructs installers to remove the kickstand by squeezing its release tab and pulling it away from the terminal.

The kickstand is useful for quick deployment and simple ground installation.

The Pivot Mount replaces that basic support with a more permanent roof-mounted system.

Securing the Pivot Mount to the Roof

The mounting base must be securely attached to suitable roof structure.

Starlink provides two lag screws for this purpose.

The current kit specifies 3/8-inch × 3.5-inch lag screws.

Correct structural placement is important.

The mount should not simply be attached to a weak roof section because that position happens to have good sky visibility.

The installation needs both:

Good satellite visibility + secure structural attachment.

Roof Waterproofing

Any installation that penetrates a roof needs careful waterproofing.

The Pivot Mount kit includes both sealant tape squares and sealant tape strips.

These components help manage sealing around the mounting points.

Poorly sealed roof penetrations can allow water to enter the roof structure.

This can potentially damage:

• Ceilings

• Insulation

• Timber

• Electrical equipment

• Interior finishes

Professional installation becomes particularly valuable where roof construction is complex or where the installer is uncertain about waterproofing.

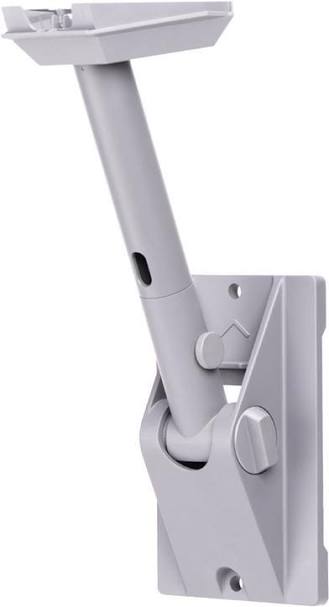

Pivot Adjustment

The adjustable pivot mechanism is what separates this mount from many simpler mounting solutions.

Table 4: Pivot Mount vs Standard Kickstand

Feature	Pivot Mount	Standard Kickstand
Slanted Roof Installation	Yes	Not its primary use
Permanent Installation	Yes	Quick/basic installation
Pivot Adjustment	Up to 90°	No comparable mast pivot
Roof Fastening	Yes	No
Sealant Components	Included	Not required
Cable Clips	20 included	Not mount-specific
Elevated Installation	Yes	Usually ground/surface
Best Use	Permanent sloped roof	Quick setup

Starlink notes that the Standard kit already includes a detachable kickstand, while alternative mounts are offered for installations where a different mounting method is needed.

Aligning Starlink After Installation

After the mount has been secured, the terminal is inserted into the Pivot Mount.

Starlink instructs users to rotate the terminal so that it faces a clear view of the sky.

The Starlink App then displays an alert if further rotation is required.

Once the alignment tool indicates the terminal is correctly positioned, the thumb-screw on the mast is tightened to prevent further rotation.

This creates a combination of physical adjustment and software-assisted alignment.

Pivot Mount vs Wall Mount

The Standard Wall Mount and Pivot Mount are both permanent installation options, but they suit different building surfaces.

Table 5: Pivot Mount vs Wall Mount

Feature	Pivot Mount	Wall Mount
Slanted Roof	Excellent	Not primary application
Exterior Wall	No	Excellent
Pivot Adjustment	Yes	Different geometry
Roof Penetration	Yes	No roof penetration
Elevation	Excellent	Good
Sealant Hardware	Yes	Installation-specific
Best Use	Direct roof mounting	Building side/gable
Standard Compatibility	Yes	Yes

Starlink's own video guidance describes the Pivot Mount as best for installation directly on a home's slanted roof, while the Wall Mount is intended for installation on the side of a home.

Pivot Mount vs Pipe Adapter

The Pipe Adapter is designed for customers who already have an appropriate pole.

The Pivot Mount creates its own roof-supported mast.

Table 6: Pivot Mount vs Pipe Adapter

Feature	Pivot Mount	Pipe Adapter
Existing Pole Required	No	Yes
Slanted Roof	Excellent	Depends on pole
Mast Included	Yes	Uses existing pole arrangement
Pivoting Base	Yes	No comparable roof pivot
Roof Attachment	Yes	Not necessarily
Best Application	Sloped roof	Existing pole
Permanent Setup	Yes	Yes
Standard Compatibility	Yes	Yes

Starlink's installation guidance identifies the Pipe Adapter as the preferred Standard accessory when mounting on an existing pole.

Pivot Mount for Residential Homes

Residential homes are one of the most natural applications for this accessory.

A roof installation can move Starlink above:

• Boundary walls

• Nearby vehicles

• People

• Garden vegetation

• Ground-level equipment

This can help provide a clearer satellite view.

The mount also keeps the Starlink terminal away from areas where children, pets or routine property activities might disturb it.

The exact roof location should still be selected using the Starlink obstruction tool.

Pivot Mount for Offices

Office properties may use the Pivot Mount when the roof provides the clearest Starlink location.

A typical network might be:

Starlink Standard → Pivot Mount → Starlink Cable → Router 3 → Switch → Office Network

The network can then serve:

• Computers

• Printers

• CCTV

• Access points

• VoIP systems

• Smart devices

The Pivot Mount only handles terminal positioning.

Internal network coverage still needs proper design.

Pivot Mount for Lodges and Hotels

Lodges may have large compounds, multiple rooms and significant vegetation.

Ground-level installation can sometimes be heavily obstructed.

Installing Starlink on an appropriate roof may provide a better sky view.

The internet connection can then be distributed through:

• Ethernet cabling

• Network switches

• WiFi access points

• Compatible mesh systems

The Pivot Mount does not extend WiFi coverage itself.

Its purpose is to correctly support the outdoor Starlink terminal.

Pivot Mount for Schools

Schools may also benefit from elevated Starlink placement.

Roof mounting can protect the terminal from accidental interference while providing a potentially clearer satellite view.

The connection can then feed a structured network serving:

• Administration offices

• Computer laboratories

• Staff rooms

• Classrooms

• CCTV systems

Larger schools may require several wired or wireless access points beyond the Starlink router.

Pivot Mount for Farms

Farms frequently contain trees, storage buildings and other structures that can obstruct a ground-mounted terminal.

A roof installation on a farmhouse, office, workshop or store can provide greater elevation.

However, large mature trees can still obstruct Starlink even from a roof.

Use the Starlink App before drilling.

If the available roof remains heavily obstructed, a suitable pole installation may provide a better solution.

Pivot Mount for Commercial Buildings

Commercial installations benefit from permanent, organised mounting.

The Pivot Mount can be appropriate where a sloped roof offers the best installation point.

For business environments, installers should consider the complete route from the terminal to the networking equipment.

This includes:

• Cable length

• Cable protection

• Router position

• Power availability

• Switch placement

• Access-point layout

• Backup power

A well-mounted terminal is only one component of a reliable business network.

Cable Routing

Starlink includes 20 cable-routing clips with the current Pivot Mount kit.

These help organise the Starlink cable after the terminal has been mounted.

Cable routing should avoid:

• Sharp bends

• Roof edges that could damage the cable

• Loose hanging sections

• Areas where water collects

• Doors and windows that could crush the cable

• High-traffic areas

• Unprotected vehicle paths

The route should be planned before completing the permanent roof installation.

Durable Weather-Resistant Construction

Starlink describes the Pivot Mount as being made from durable, weather-resistant materials and designed to provide a sturdy foundation across different environmental conditions.

This is important because roof-mounted equipment remains exposed to weather.

Even with purpose-built mounting hardware, periodic inspection is sensible.

Check that:

• Fasteners remain secure

• The mast has not rotated

• Cable clips remain intact

• The cable is undamaged

• Roof sealing remains sound

• New obstructions have not appeared

Does the Pivot Mount Increase Starlink Speed?

No.

The Pivot Mount is a mechanical mounting accessory.

It does not contain satellite electronics, amplifiers or networking equipment.

It cannot directly increase Starlink bandwidth.

Its value comes from helping position the terminal correctly.

A better mounting location may reduce interruptions caused by physical obstructions, but this should not be confused with the mount electronically increasing internet speed.

Why Proper Alignment Matters

Current Standard hardware relies on software-assisted manual orientation rather than the built-in self-orienting motor found on some older Starlink hardware. Starlink describes Standard 4 and Standard 4 X as terminals without a built-in motor for self-orientation.

The Pivot Mount therefore gives the installer the physical flexibility required to position the terminal.

The Starlink App then provides alignment guidance.

Once the terminal is aligned, the mast thumb-screw locks its rotational position.

Is the Pivot Mount Compatible with Starlink Mini?

No. Starlink states that mounts for Standard and Enterprise are specific to those hardware families and are not compatible with other kits.

Starlink Mini has its own mounting accessories, including Mini-specific roof, wall, pivot, mobility and other mounting solutions.

Do not assume that a Standard Pivot Mount will fit Mini simply because both terminals are rectangular.

Is It Compatible with Standard Actuated?

The current Standard Pivot Mount is designed around current Standard and Enterprise hardware.

Standard Actuated is a different Starlink generation with a built-in self-orienting motor and a different mounting architecture.

Starlink specifically warns that Standard and Enterprise mounts are kit-specific.

Customers upgrading from Standard Actuated should therefore verify their mounting hardware instead of assuming their old mount or a new Standard Pivot Mount can be interchanged directly.

Professional Pivot Mount Installation

Installing Starlink on a roof involves more than attaching two screws.

A professional installation can include:

• Obstruction assessment

• Safe roof access

• Structural mounting-point selection

• Drilling

• Waterproof sealing

• Pivot adjustment

• Starlink alignment

• Cable routing

• Router installation

• WiFi testing

Roof height, pitch and construction materials can make installation significantly more difficult than a ground-level Starlink setup.

Where safe access is uncertain, professional installation is the better approach.

Why Choose the Starlink Standard Pivot Mount?

The Starlink Standard Pivot Mount is particularly suitable when you need:

• Permanent roof installation

• Slanted-roof mounting

• Shingled-roof installation

• Adjustable positioning

• Up to 90° pivot movement

• Standard compatibility

• Enterprise compatibility

• Weather-resistant mounting

• Roof sealing accessories

• Dedicated cable-routing clips

• Software-assisted alignment

• A purpose-built Starlink roof mount

The combination of an adjustable mast, dedicated roof base and Starlink App alignment makes it a practical solution for many fixed installations.

Why Buy from Starlink Uganda Installers?

Starlink Uganda Installers can help determine whether the Pivot Mount is appropriate for your roof before installation.

Not every property needs the same mounting solution.

A Pivot Mount may be ideal for a slanted roof, while a Wall Mount may be better for a building side, a Pipe Adapter may be preferable where an existing pole is available, and an X-Frame Base may work where open ground already provides an unobstructed sky view.

Professional assistance can also cover cable routing, Router 3 setup, Ethernet networking, WiFi coverage and complete Starlink installation.

Frequently Asked Questions About Starlink Standard Pivot Mount

1. What is the Starlink Standard Pivot Mount?

The Starlink Standard Pivot Mount is a permanent mounting accessory designed primarily for installing Starlink on slanted and shingled roofs. Its swivelling mechanism allows installers to adjust the mast according to the roof and required terminal orientation.

2. Which Starlink kits are compatible with the Pivot Mount?

Starlink officially lists the Standard Pivot Mount as compatible with Starlink Standard and Starlink Enterprise. Starlink also states that Standard and Enterprise mounts are specific to those hardware families.

3. How much adjustment does the Pivot Mount provide?

Starlink's technical drawing shows a 90-degree pivot range, giving installers substantial flexibility when adapting the mount to different roof slopes.

4. What comes with the Standard Pivot Mount?

The current kit contains the Pivot Mount, Mast Adapter, Mast, sealant tape strips, sealant tape squares, two 3/8 × 3.5-inch lag screws and 20 cable-routing clips.

5. What tools are required to install the Pivot Mount?

Starlink recommends a drill or impact driver, 6 mm (1/4-inch) drill bit, 9/16-inch hex socket, marker and level. The Starlink App is also used to check obstructions and align the terminal.

6. How large is the Starlink Standard Pivot Mount?

Starlink's technical drawing shows an overall height of approximately 448 mm (17.6 in), a front width of approximately 140 mm (5.5 in) and a side base dimension of approximately 223 mm (8.78 in).

7. How much does the Pivot Mount weigh?

Starlink lists the packaged Pivot Mount at approximately 1.9 kg (4.2 lb), with package dimensions of approximately 280 × 470 × 105 mm.

8. Does the Pivot Mount help waterproof the roof installation?

The kit includes sealant tape squares and strips intended for the mounting installation. Correct drilling, structural attachment and sealing remain important to prevent water ingress through roof penetrations.

9. How do I align Starlink after installing the Pivot Mount?

After inserting the terminal into the mount, rotate it toward a clear sky view. The Starlink App will provide an alignment alert if adjustment is required. Once correctly aligned, tighten the mast thumb-screw to prevent rotation.

10. Where can I buy a Starlink Standard Pivot Mount in Uganda?

Customers can contact Starlink Uganda Installers for the Standard Pivot Mount and assistance with roof assessment, obstruction checking, mounting, waterproof sealing, cable routing, terminal alignment and complete Starlink installation.

Conclusion

The Starlink Standard Pivot Mount is a purpose-built permanent mounting solution for installing Starlink Standard and Enterprise on suitable slanted and shingled roofs. Its swivelling mechanism provides up to 90 degrees of adjustment, while the current kit includes a Pivot Mount, Mast Adapter, Mast, sealant materials, two lag screws and 20 cable-routing clips. Starlink lists a package weight of approximately 1.9 kg and specifically positions the accessory as a roof-mounting solution for flexible alignment.

The main advantage of the Pivot Mount is the combination of elevation and adjustability. Installers can first identify a roof position with a clear sky view, securely mount the base, adjust the mast and then use the Starlink App to complete terminal alignment. Once alignment is correct, the mast thumb-screw is tightened to prevent rotation. Correct structural attachment, roof sealing and cable routing are just as important as terminal alignment, particularly for permanent residential and commercial installations.

For a Starlink Standard Pivot Mount in Uganda, Starlink Uganda Installers can assist with mount selection, roof assessment, obstruction checking, professional installation, waterproof sealing, cable routing, Router 3 setup and complete Starlink networking for homes, offices, lodges, schools, farms and commercial properties.
