Starlink Standard X-Frame Base: 7 Powerful Setup Benefits

Starlink Standard X-Frame Base in Uganda

Not every Starlink installation needs to begin with drilling a roof or exterior wall.

Some properties already have an open compound, terrace or other ground-level area with a clear view of the sky.

Other customers may require Starlink only temporarily.

In these situations, the Starlink Standard X-Frame Base provides a simple freestanding mounting solution.

Starlink specifically describes this accessory as suitable for ground-level installation or quick setup and says its durable, weather-resistant construction provides a sturdy foundation for Starlink.

What Is the Starlink Standard X-Frame Base?

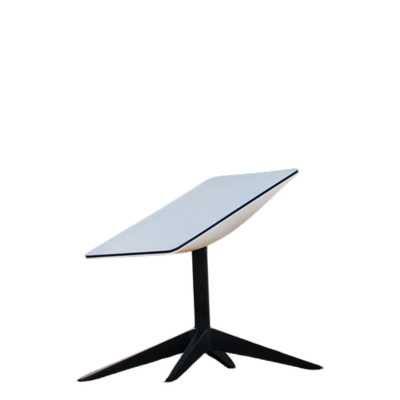

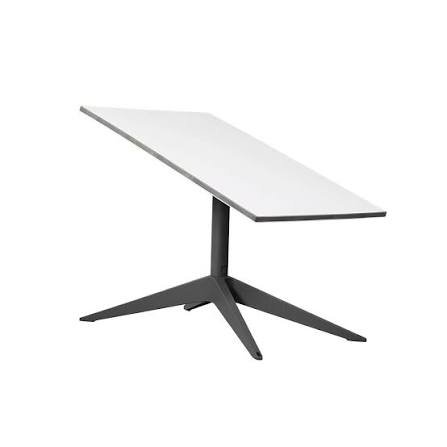

The Standard X-Frame Base is a mounting system consisting of an X-shaped ground base and supporting mast.

Instead of attaching the Starlink terminal directly to a building, the base supports it from the ground.

This creates a setup that can be useful when:

• Roof mounting is unnecessary
• Wall drilling is undesirable
• No suitable pole exists
• The installation is temporary
• Starlink needs to be tested before permanent mounting
• Easy relocation is useful

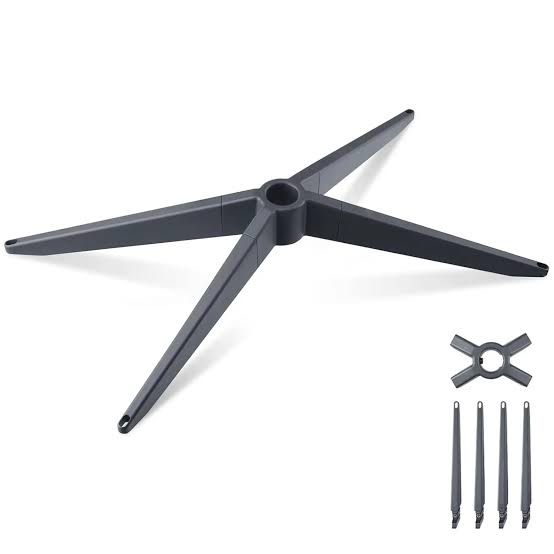

The X-shaped design creates a wider supporting footprint than the compact kickstand supplied with Standard hardware.

Starlink Standard X-Frame Base Specifications

Table 1: Standard X-Frame Base Specifications

Starlink publishes these dimensions and compatibility details in its Standard Accessories Guide.

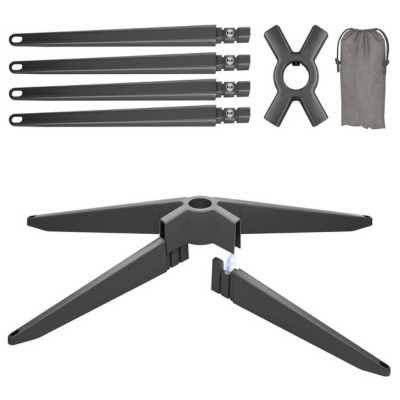

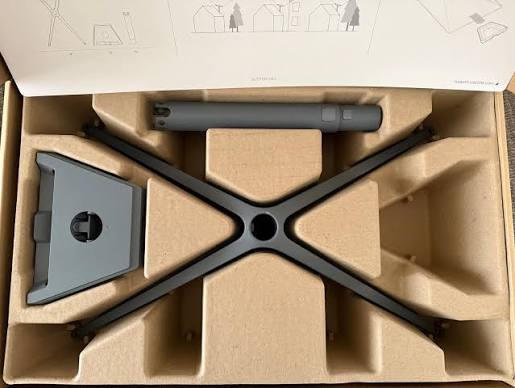

What Comes with the X-Frame Base?

The Standard X-Frame Base is supplied as a small mounting system rather than only the X-shaped bottom section.

Table 2: X-Frame Base Package Contents

Starlink lists the X-Frame Base, Mast Adapter and Mast as the included components.

This makes it possible to create a freestanding mounting arrangement without supplying a separate pole.

Designed for Ground-Level Starlink Installation

Ground installation is the primary purpose of the Standard X-Frame Base.

A ground-level installation may be suitable where the property has an open area without significant obstructions.

Potential locations include:

• Open compounds
• Terraces
• Gardens
• Farm compounds
• Temporary offices
• Project sites
• Open commercial areas

However, ground level should only be selected when it provides an appropriate satellite view.

A roof or pole may still be necessary where nearby objects block too much of the sky.

Quick Starlink Setup

Starlink also specifically identifies quick setup as an application for the X-Frame Base.

This can be useful where a permanent installation is not immediately required.

For example, a new Starlink customer might want to test several positions around a property before deciding where to permanently install the terminal.

A temporary project may only need connectivity for a few weeks or months.

The X-Frame Base allows the terminal to be supported without immediately committing to permanent building modifications.

X-Frame Base for Starlink Standard

The X-Frame Base is officially compatible with Starlink Standard.

This includes the newer rectangular Standard hardware commonly described by customers as:

• Starlink Gen 3
• Starlink V4
• Starlink Version 4
• Standard Gen 3
• Standard 4
• Standard 4 X

Starlink has updated its naming over time, so checking the exact hardware remains important when purchasing mounting accessories.

The current Standard terminal uses manual app-guided alignment rather than the built-in motor found on the older Standard Actuated hardware.

X-Frame Base for Starlink Enterprise

Starlink also officially lists Enterprise as compatible with the Standard X-Frame Base.

This gives Enterprise customers another installation option where ground-level placement is suitable.

However, Enterprise installations often serve business environments where factors such as:

• Cable routing
• Network-room location
• Security
• Physical protection
• Backup connectivity
• Access-point deployment

may also need consideration.

The mount solves the physical terminal-placement requirement, not the entire network design.

X-Frame Base vs Standard Kickstand

Current Standard Starlink kits include a compact kickstand for straightforward setup.

The X-Frame Base provides a different mounting structure.

Table 3: X-Frame Base vs Standard Kickstand

The kickstand may already be sufficient for a simple Standard installation.

The X-Frame Base is useful where a customer prefers a dedicated mast-and-base configuration.

X-Frame Base vs Wall Mount

The Wall Mount attaches Starlink to the exterior of a building.

The X-Frame Base stands independently on the ground.

Table 4: X-Frame Base vs Wall Mount

A Wall Mount can be preferable when elevation is required to clear trees, fences or surrounding buildings.

The X-Frame Base is attractive when the ground already offers sufficient sky visibility.

X-Frame Base vs Pivot Mount

The Pivot Mount is primarily intended for mounting compatible Starlink hardware on a suitable roof surface.

The X-Frame Base avoids roof attachment.

Table 5: X-Frame Base vs Pivot Mount

The correct option depends primarily on the property's obstruction environment.

X-Frame Base vs Pipe Adapter

The Standard Pipe Adapter is useful when an appropriate existing pole is available.

The X-Frame Base provides its own supporting structure.

Table 6: X-Frame Base vs Pipe Adapter

If a property already has a suitable pole in a good location, the Pipe Adapter may be the cleaner solution.

If no pole exists, the X-Frame Base eliminates the need to install one for a basic ground-level setup.

Choosing the Best X-Frame Location

A stable base does not solve satellite obstruction problems.

Location remains extremely important.

Before placing the X-Frame Base, consider:

• Trees
• Buildings
• Roofs
• Walls
• Water tanks
• Power lines
• Fences
• Other tall structures

Use Starlink's obstruction and alignment tools to help evaluate the installation location.

The terminal needs enough open sky to maintain communication with passing satellites.

Choose a Stable Surface

The X-Frame Base should be positioned where it can remain stable.

A suitable location may include:

• Firm level ground
• Concrete
• A stable terrace
• Another structurally suitable flat surface

Avoid placing the base on unstable ground where it may sink or shift.

Soft soil can change after heavy rain.

Uneven surfaces may cause the installation to become unstable.

The location should be checked periodically, particularly after severe weather or if people frequently move around the equipment.

Avoid High-Traffic Areas

Ground-mounted Starlink equipment is easier to reach than roof-mounted equipment.

That also means it is easier to accidentally disturb.

Avoid placing the X-Frame Base:

• Across pathways
• Near doors
• In parking areas
• Beside busy driveways
• Where children frequently play
• In livestock areas
• Near moving machinery

A good Starlink location should provide both clear satellite visibility and physical protection.

Protect the Starlink Cable

A ground installation may require the Starlink cable to travel horizontally toward the building.

Do not leave the cable loose across the compound.

Protect it from:

• Vehicles
• Foot traffic
• Animals
• Sharp edges
• Garden equipment
• Construction machinery

Cable routing should be planned at the same time as terminal placement.

There is little benefit in finding a perfect X-Frame location if the cable cannot safely reach the router.

X-Frame Base for Homes

Residential properties with open compounds can be good candidates for X-Frame installation.

The stand can be used when:

• The roof is difficult to access
• The customer does not want roof drilling
• The property has open sky at ground level
• Starlink may need relocation later

A ground setup can also provide a convenient way to test Starlink before investing in a permanent elevated mount.

If obstruction data later shows that ground-level positioning is inadequate, the terminal can be moved to a roof, wall or pole.

X-Frame Base for Rental Properties

Tenants may not always have permission to modify roofs and exterior walls.

A freestanding base can provide an alternative where an open ground-level location exists.

This may reduce the need for permanent building modifications.

However, cable entry still needs careful planning.

If cable routing requires drilling through a wall, permission may still be necessary.

The installation should respect the property owner's requirements.

X-Frame Base for Offices

Small offices may use the X-Frame Base where the building has an open compound with suitable satellite visibility.

A typical setup might be:

Starlink Standard → X-Frame Base → Starlink Cable → Router 3 → Office Network

Router 3 can then connect to:

• Computers
• Network switches
• Access points
• CCTV networks
• Other Ethernet equipment

The X-Frame Base only handles the physical terminal mounting.

Office network design remains a separate consideration.

X-Frame Base for Construction Sites

Construction sites are one of the most practical applications for a quick, freestanding Starlink setup.

The permanent building may not yet be completed.

Internet may still be needed for:

• Engineers
• Project managers
• Contractors
• Security
• Site offices
• Communication
• Cloud systems

The X-Frame Base can support Starlink without requiring a finished roof or permanent wall.

As construction progresses, the system can later be relocated.

X-Frame Base for Farms

Farms often have large open areas where satellite visibility can be good.

The X-Frame Base may be positioned near:

• Farmhouses
• Workshops
• Stores
• Offices
• Field stations

However, tall trees should be considered carefully.

If vegetation significantly obstructs the terminal at ground level, a pole or roof installation may be preferable.

The mount should also be protected from livestock and farm machinery.

X-Frame Base for Temporary Projects

Some projects need internet only temporarily.

Examples include:

• Engineering projects
• Research operations
• Temporary offices
• Remote field teams
• Construction projects
• Survey teams

A permanent roof installation may make little sense if the entire operation will relocate.

The X-Frame Base provides a more portable installation approach.

When the project ends, the Starlink equipment and stand can be dismantled and moved.

X-Frame Base for Events

Temporary event connectivity can also benefit from freestanding Starlink installation where appropriate.

The stand can potentially support connectivity for:

• Registration areas
• Production teams
• Event administration
• Temporary offices
• Remote venues

However, the terminal should be kept away from crowds.

Cables should never create trip hazards.

Event installations should also have suitable power and networking equipment.

Standard X-Frame Base and Alignment

The newer Standard terminal does not use the automatic motorised alignment found on Standard Actuated.

The terminal is manually positioned with guidance from the Starlink app.

This makes the stability of the base important.

If someone moves the X-Frame after alignment, the terminal's orientation may need to be checked.

At temporary sites, staff should therefore avoid casually moving the stand after installation.

Does the X-Frame Base Improve Starlink Speed?

No.

The X-Frame Base contains no electronics and does not increase satellite bandwidth.

Its role is physical:

Support and position the Starlink terminal.

However, mounting location can indirectly affect performance.

A poorly positioned terminal surrounded by obstructions may experience interruptions.

A correctly positioned terminal with a clearer view of the sky can communicate with satellites more effectively.

The benefit comes from proper placement, not from the stand electronically increasing speed.

Is the X-Frame Base Weather Resistant?

Yes. Starlink describes the Standard X-Frame Base as being manufactured from durable, weather-resistant materials intended to provide a sturdy and enduring foundation in different environmental conditions.

Weather resistance does not eliminate the need for installation checks.

After severe weather, confirm that:

• The base has not moved
• The ground has not shifted
• The terminal remains aligned
• The cable remains secure
• Nothing new is obstructing the terminal

Ground conditions can change even when the mounting hardware remains intact.

Can You Put the X-Frame Base on a Roof?

The X-Frame Base is primarily described by Starlink for ground-level installation or quick setup.

A rooftop presents different risks, particularly wind and movement.

Starlink provides dedicated roof and structural mounting options such as the Pivot Mount for appropriate applications.

Use the mounting accessory intended for the installation environment rather than improvising with a freestanding base in an unsafe elevated location.

Is the X-Frame Base Compatible with Starlink Mini?

The Standard X-Frame Base is not listed as a Starlink Mini mounting accessory.

Mini has its own dedicated mounting ecosystem.

These include options such as:

• Mini Pivot Mount
• Mini Wall Mount
• Mini Mobility Mount
• Mini Roof Rack Mount
• Mini Pipe Adapter

Do not assume mounts are interchangeable merely because both terminals are rectangular.

Is It Compatible with Standard Actuated?

Standard Actuated uses a different terminal and mounting architecture from the newer Standard hardware.

The older Standard Actuated terminal contains a motor that automatically adjusts its orientation, whereas the newer Standard is manually aligned.

Mount compatibility should therefore be checked carefully when replacing older Starlink hardware.

Do not automatically reuse a Standard Actuated mounting arrangement with newer Standard hardware.

Professional X-Frame Installation

The X-Frame Base is intended to simplify installation, but choosing the correct location may still require experience.

A professional installer can help with:

• Obstruction assessment
• Ground location selection
• Terminal alignment
• Cable measurement
• Cable routing
• Router positioning
• WiFi planning
• Ethernet networking
• Connectivity testing

This can be particularly valuable for offices, farms, lodges and commercial installations.

Why Choose the Starlink Standard X-Frame Base?

The Starlink Standard X-Frame Base is useful when you need:

• Ground-level Starlink installation
• Quick setup
• A freestanding mount
• No existing pole
• Reduced need for building drilling
• Temporary connectivity
• Easier relocation
• A dedicated mast
• Weather-resistant construction
• Standard compatibility
• Enterprise compatibility
• Flexible installation planning

Its biggest advantage is providing a complete freestanding mounting structure without requiring an existing building-mounted support.

Why Buy from Starlink Uganda Installers?

Starlink Uganda Installers can help determine whether the X-Frame Base is appropriate for the property before installation.

A ground-level base may work perfectly in an open compound but perform poorly where trees or buildings obstruct the sky.

In those situations, a Wall Mount, Pivot Mount or Pipe Adapter may provide a better installation position.

Professional installation can also include cable routing, Router 3 setup, WiFi optimisation and complete network configuration.

Frequently Asked Questions About Starlink Standard X-Frame Base

1. What is the Starlink Standard X-Frame Base?

The Starlink Standard X-Frame Base is a freestanding mounting accessory designed for ground-level Starlink installation or quick setup. It provides a stable foundation without requiring an existing pole or wall.

2. What comes with the Standard X-Frame Base?

Starlink lists the X-Frame Base, Mast Adapter and Mast as the included components. The Starlink terminal itself is separate.

3. Which Starlink kits are compatible with the X-Frame Base?

Starlink officially lists the Standard X-Frame Base as compatible with Starlink Standard and Starlink Enterprise.

4. How much does the Starlink X-Frame Base weigh?

The packaged Standard X-Frame Base weighs approximately 2.9 kg (6.4 lb).

5. What are the package dimensions?

Starlink lists package dimensions of approximately 380 × 640 × 145 mm, equivalent to approximately 15 × 25.2 × 5.7 inches.

6. Can I use the X-Frame Base for a temporary Starlink installation?

Yes. Starlink specifically describes the accessory as designed for ground-level installation or quick setup, making it useful for temporary projects and relocatable installations.

7. Is the Standard X-Frame Base weather resistant?

Yes. Starlink describes it as being constructed from durable, weather-resistant materials to provide a sturdy foundation in different environmental conditions.

8. Can I use the Standard X-Frame Base with Starlink Mini?

Starlink does not list Mini compatibility for the Standard X-Frame Base. Mini has its own range of Mini-specific mounts, so the correct accessory should be selected for the exact hardware.

9. Is the X-Frame Base better than a Wall Mount?

They serve different purposes. The X-Frame Base is suited to open ground and quick installations, while a Wall Mount provides elevation on a building. The better choice depends on obstructions, property layout and installation requirements.

10. Where can I buy a Starlink Standard X-Frame Base in Uganda?

Customers can contact Starlink Uganda Installers for the Standard X-Frame Base and assistance with compatibility checks, location assessment, installation, cable routing and complete Starlink setup.

Conclusion

The Starlink Standard X-Frame Base provides a practical freestanding solution for ground-level and quick Starlink installations. Starlink supplies the X-Frame Base with a Mast Adapter and Mast and lists compatibility with both Standard and Enterprise hardware. The packaged accessory measures approximately 380 × 640 × 145 mm and weighs around 2.9 kg, while its durable, weather-resistant construction is intended to provide a sturdy foundation in different environmental conditions.

Its main advantage is flexibility. Homes, farms, offices, construction sites and temporary projects can position compatible Starlink hardware without immediately installing a permanent wall, roof or pole mount. However, the location still needs a suitable sky view, a stable surface and protected cable routing. Where buildings, trees or other obstructions interfere with a ground-level installation, an elevated Wall Mount, Pivot Mount or Pipe Adapter may be more appropriate.

For a Starlink Standard X-Frame Base in Uganda, Starlink Uganda Installers can assist with mount selection, obstruction assessment, terminal positioning, cable routing and complete Starlink installation for homes, offices, farms, lodges and project sites.
